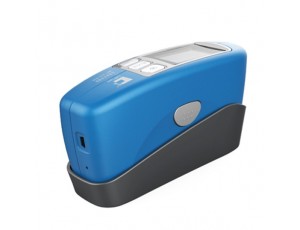

Precise Three Angle Gloss Meter CS-380
- LOGIN FOR MORE INFO
•Measure the gloss on a test surface at 3 different angle: 20°, 60°, 85°.
•mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and others.
•Conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and others.
Product Introduction
1. High Precision
- Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure high precision of the measured value.
- It conforms to JJG 696 standard for first-class gloss meters. Every instrument has a metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering centre of the Ministry of Education in China.
2. Super Stability (Patent Right No.: ZL2012201796876)
- Every gloss meter made by us has done the following test:
- 412 calibration tests;
- 43200 stability tests;
- 110 hours of accelerated aging test;
- 17000 vibration test
3. Comfortable Grab Feeling
- The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and does not cause allergy. This design is for better user experience
4. Large Battery Capacity
- We fully utilized every space of the device and specially custom made advanced high-density lithium battery in 3000mAH, which ensures continuous testing for 54300 times.
Model | CS-380 |
Test Angle | 20°,60°,85° |
Test light spot(mm) | 20°:10*10 60°:9*15 85°:5*38 |
Test range | 20°:0-2000GU 60°:0-1000GU 85°:0-160GU |
Resolution | 0.1GU |
Test modes | Simple mode, standard mode and sample testing mode |
Repeatability | 0-100GU:0.2GU 100-2000GU:0.2%GU |
Accuracy | Conform to JJG 696 standard for first class gloss meter |
Test time | Less than 1s |
Data storage | 100 standard samples; 10000 test samples |
Size(mm) | 165*51*77 (L*W*H) |
Weight | About 400g |
Language | Chinese and English |
Battery capacity | 3000mAh lithium battery |
Port | USB, Bluetooth (optional) |
Upper-PC Software | Include |
Working Temperature | 0-40℃ |
Working Humidity | <85%, no condensation85%,> |
Accessories | 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification |
