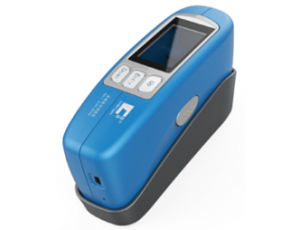

Single Angle Gloss Meter CS-300

Products

    Lab and Industrial Solutions Lab and Industrial Solutions

Single Angle Gloss Meter CS-300

  • LOGIN FOR MORE INFO
0
  • Measure the gloss on a test surface with the standard measurement angle at 60°C.
  • Mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and others.
  • Conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and others.

Share

Product Introduction

1. High Precision

  • Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure high precision of the measured value.
  • It conforms to JJG 696 standard for first-class gloss meters. Every instrument has a metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering centre of the Ministry of Education in China.

2. Super Stability (Patent Right No.: ZL2012201796876)

  • Every gloss meter made by us has done the following test:
    • 412 calibration tests;
    • 43200 stability tests;
    • 110 hours of accelerated aging test;
    • 17000 vibration test

3. Comfortable Grab Feeling

  • The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and does not cause allergy. This design is for better user experience

4. Large Battery Capacity

  • We fully utilized every space of the device and specially custom made advanced high-density lithium battery in 3000mAH, which ensures continuous testing for 54300 times.

Model

CS-300

Test Angle

60°

Test light spotmm

60°9*15

Test range

60°0-1000GU

Resolution

0.1GU

Test modes

Simple mode, standard mode and sample testing mode

Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy

Conform to JJG 696 standard for first-class gloss meter

Test time

0.5s

Data storage

100 standard samples; 10000 test samples

Size(mm)

165*51*77 (L*W*H)

Weight

About 400g

Language

Chinese and English

Battery capacity

3000mAh lithium battery

Port

USB, Bluetooth (optional)

Upper-PC Software

Include

Working Temperature

0-40

Working Humidity

<85%, no condensation

Accessories

5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification
